Industrial Gaskets

Ceramic Fiber Gaskets are cut to suit from Ceramic Cloth as per the dimension and specifications of our client. It is extremely suitable for sealing at high-temperature condition and has better compressibility & resiliency as compared to its alternatives. For high pressure condition, a wire mesh insert of appropriate thickness is applied to strengthen the gasket.

Gaskets tend to seal better than other types because of the corrugations. They are used for circular and moderately noncircular shapes in widths 12mm and wider. With Corrugated metal filled intead of asbestos, operating temperatures is limited only by the metal selected.

• More resilient than Double Jacketed-Soft-Filled.
• For rings only or Flanges of special shape gaskets.
• May be used in place of spiral wound gaskets. In very large diameters or wide flange sizes.
• Excellent choice for difficult installations such as tower gaskets.

Get high-quality double-jacketed metal gaskets from India's top suppliers and sellers. Shop now and enjoy fast delivery and competitive prices!

These gaskets provide more support to flanges than single-jacketed gaskets & are used when filler material to be protected. These gaskets are in circular & irregular shape also. Generally, these gaskets are used gaskets is less than 6mm thick. There is no diameter limitation in this type of gasket. Filler materials are to be used like CAF / Asbestos / P.T.F.E. / graphic depending on pressure & temperature & corrosion Conditions of the equipment.

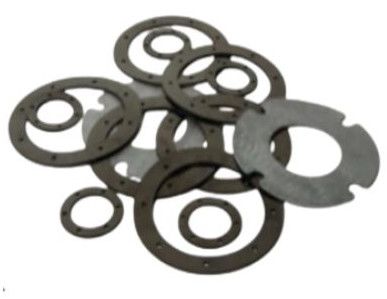

Looking for Flat Type of Gaskets in Ahamadabad? We are leading suppliers offering quality Gaskets at competitive prices. Check out our wide range of Gaskets now!

These gaskets are made from any soft material. Material used for this gaskets are GAF/Rubber/Asbestos S.S./P.T.F.E./Brass /Copper /M.S. etc. in any size & shape. The thickness of gaskets are as per the customer's specification.

Insulating sets are essentially used for pipeline flange corrosion protection, where a seal is required between dissimilar flange materials. The use of dissimilar metallic flanges with a conductive gasket material accompanied by a suitable electrolyte may set up a galvanic cell that will corrode the anodic metal. Insulating sets are also used to electrically isolate flange joints, preventing the flow of electrostatic charge along pipelines.

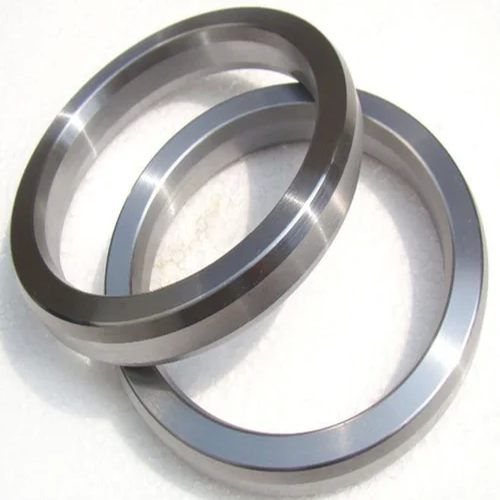

Find the best quality Lens Ring & Tapper Ring Gaskets from trusted suppliers in Gujarat. Get great deals on a wide range of gasket products at competitive prices.

A lens ring gasket, also known as a washer with a ball face, is mainly used for high-pressure pipe connections. The primary function of the lens ring gasket is to seal. Metal lens gaskets include metal flat gaskets, triangular gaskets, double cone rings, C-ring and C-type gasket, ring gasket, serrated gasket, wave gasket, and hollow a-ring, etc.

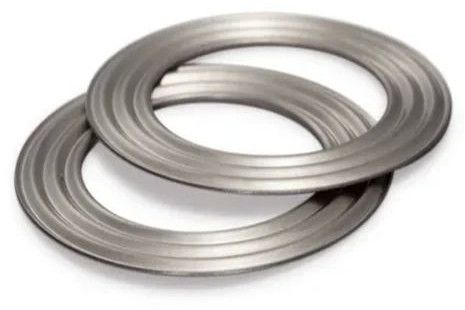

High-quality Corrugated Metallic Gaskets in Ahmedabad. We are leading suppliers and manufacturers of custom-made gaskets for a wide range of industries. Get your gaskets now!

Normally the corrugated gaskets are used in Glass lined vessels & valves. These gaskets are made from SS/MS material. The ranges of this gasket are from 15NB to maximum as per clients' requirements. Normally corrugated pitches are 4mm, 5mm, and 6mm with peak to peak. The superior technology of the Corrugated gaskets ensures excellent sealing performance and reliability, even in the most difficult applications. Corrugated metal core with a compressible sealing element of various materials, for resistance to a wide range of harsh conditions, including extreme temperature, corrosive chemicals and thermal cycling.

These gaskets are made from compressed Asbestos Fiber jointing sheet. (High Pressure). These gaskets are made from graphoil sheet also. There are different grades in CAF jointing sheet which are used as per the clients requirement. These gaskets are made from Non-Asbestos sheet also. Normally the standard of this gaskets are Ring Type & full face.

We are making any other special types of gaskets as per requirements of customers specification (Technical). Non Asbestos Gaskets are used as heat exchanger gaskets, compressor and bonnet valve gaskets and in pipe flange applications etc. Compressed Non Asbestos Fiber Gaskets are circle cut or die cut gaskets from compressed non asbestos jointing, manufactured from carefully picked fiber intimately blended with suitable heat resistant binders and vulcanized into sheets of homogenous compositions and uniform thickness.

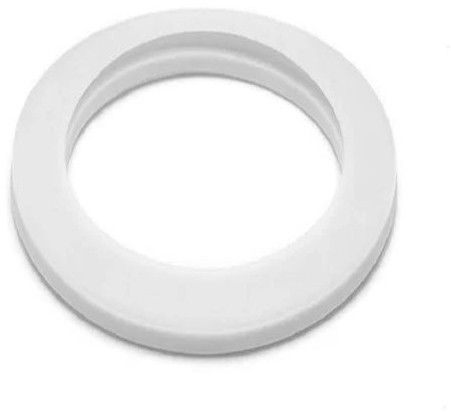

A PTFE Envelope Gasket is a composed gasket. The envelope gasket is mainly applied as a flange gasket in applications where a high chemical and high pressure resistance is required.

Properties & Application :
Envelope gaskets have the chemical resistance of PTFE, but the strength and resillence of the inlay material. PTFE envelope gaskets combine the benefits of different materials.

Advantages :

• Good chemical resistance.
• Wide temperature range. This depends both on the envelope as the inlay material.
• Good pressure resistance, depending on the choice of the inlay material.

re you looking for reliable P.T.F.E. Gasket exporters and sellers in Gujarat? We offer high quality gaskets at competitive prices. Shop now!

These gaskets are made with 0.5mm or 0.75 mm P.T.F.E. envelope with CAF insert with S.S. 304 corrugated ring. The gaskets are made from P.T.F.E. thin sheet (1mm, 1.5mm, 2mm, 3mm & 6mm) as per the standard & clients sketch.

Polytetra fluoroethylene (PTFE), which are widely used in national defense, atomic energy, petroleum, wireless, electric machinery and chemical industries etc.

Our range has the following properties:

• Long term application temperature: 250°C to (-)200°C
• Low temperature: Soft even at (-)100°C
• Corrosion resistance: Resistant to aqua regia and all organic solvents
• Weather resistance: Best aging life in plastic, high lubricants
• Smallest coefficient of friction in plastic: 0.04
• Adhesion: Smallest surface tension in solid materials, nontoxic & physiologically inert, excellent behaviour of electricity

India's leading Rubber Gaskets manufacturer and seller. Shop for high-quality gaskets at competitive prices. Get fast delivery & unmatched customer service!

These gaskets are made from different types of Rubber sheets like Neoprene, Butyl, E.P.D.M., Viton, Silicon, & Natural Rubber etc. as per the client's requirement. Normally the gaskets are as per ANSI B 16.21 Standard, ANSI B 16.5 Standard. Table-BS-10D, Table-E&F It is Ring type as well as full face. This range of products is used for chemicals, centrifugal pumps, generators, cement, marine industry, hydraulic cylinders, pumps, and pneumatic applications in earth-moving machines. The range for 'O' Rings: Available in the diameter range of 5 mm to 5000mm and various cross sections. The range for Gaskets : From 15 NB to 2500 NB and pipe sizes, made from polymer - Natural, Nitrile, EPDM, Neoprene, SBR, Viton, Silicon, Butyl, Lead-Free Rubber Grades are also available for Nuclear Applications.

These gaskets are used for narrow applications for pump seals etc. These are made in normally circular shapes & noncircular shapes. This gasket can be round, square or rectangular, etc.

Tanged Graphite Gasket Suppliers in Ahmedabad - Get the best quality graphite rings at competitive prices. We offer a wide range of graphite rings for all your needs.

Graphite is high purity carbon material containing fibres binders agent. It offers excellent sealaebility. It is used in high temperature the gaskets and rings are manufacture with S.S. Steel insert, S.S. Mess Insert or plain sheet.

Reinforced expanded graphite gasket are punched or cut from pure expanded graphite sheet or reinforced expanded graphite sheet. Reinforced expanded graphite gasket has excellent corrosion resistance, high and low temperature resistance.

Reinforced expanded graphite gasket has good compression resilience and high intensity. Reinforced expanded graphite gasket can be cut into all kinds of circular, complicated geometric expanded graphite cut gasket.

Reinforced expanded graphite gasket is widely used in pipe, valve, pump, pressure vessel, thermal exchanger, condenser, engine, air compressor, exhaust tube, refrigerating machine, etc.
